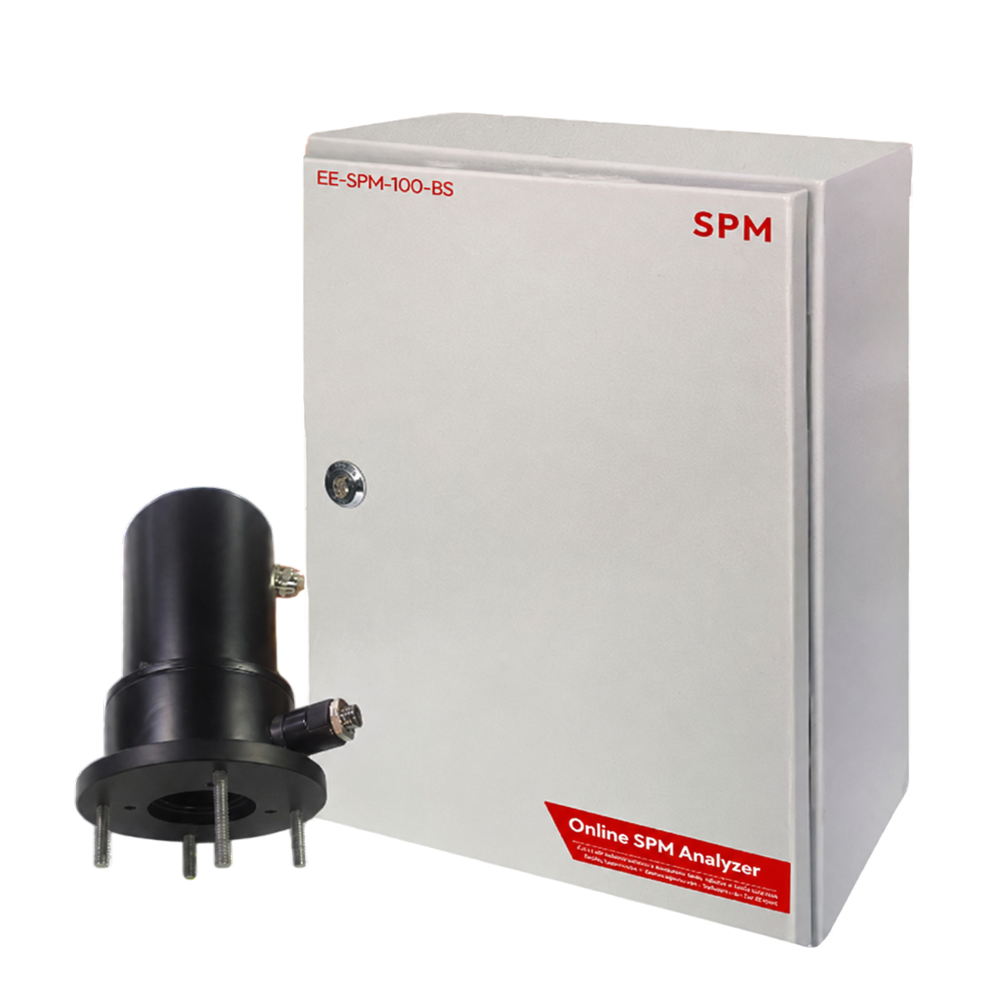

Online SPM Analyser EI-223/ SPM Analyser
550000.0 INR/Instrument
Product Details:
- Instruments Type Continuous Emission Monitoring System (CEMS)
- Orientation Wall-mounted/Vertical
- Measurement Suspended Particulate Matter (SPM)
- Automation Grade Automatic (Online mode)
- Air Flow Adaptable up to 40 m/s m3/hr
- Efficiency >98% measurement accuracy
- Temperature -10C to +55C operating ambient Celsius (oC)
- Click to View more
X
Online SPM Analyser EI-223/ SPM Analyser Price And Quantity
- 550000.0 INR/Instrument
- 1 Instrument
Online SPM Analyser EI-223/ SPM Analyser Product Specifications
- Wall-mounted/Vertical
- Continuous Emission Monitoring System (CEMS)
- Up to 100 mg/Nm3 range m3/hr
- 360 mm x 280 mm x 150 mm (enclosure) Millimeter (mm)
- Online SPM Analyzer
- Other
- Suspended Particulate Matter (SPM)
- Less than 60 dB db
- 1 Year
- Automatic (Online mode)
- Adaptable up to 40 m/s m3/hr
- Powder-coated for corrosion protection
- Real-time continuous Hours
- >98% measurement accuracy
- 230V AC, 50Hz Volt (v)
- Electric
- LED digital display/Remote interface
- Mild Steel enclosure, Industrial grade sensor
- Approx. 8 kg Kilograms (kg)
- -10C to +55C operating ambient Celsius (oC)
- Stack/duct emissions monitoring, air quality management
- Laser scattering sensor
- < 15 seconds
- Manual and auto-calibration supported
- Flange-mount probe
- <2% of full scale per month
- IP65 enclosure
- Corrosion resistant alloy / PTFE coated
- Front access with lock
- Programmable relay output for alarms
- CPCB/EPA/ISO dust monitoring standards
- Internal memory and cloud compatible
- RS485/4-20mA/optional Ethernet
Online SPM Analyser EI-223/ SPM Analyser Trade Information
- 100 Instrument Per Month
- 21 Days
- Cardboard Box with Premium Packing
- NABL, QCI
Product Description
Online Particulate Monitoring for Industrial Emissions
Laser Backscattering Technology
Cloud Enabled Monitoring
Harsh Environment Operation
|
Parameters |
Description |
Availability |
|
Performance Specifications |
Measurement Principle: |
Laser Backscattering |
|
|
Measurement Range: |
0-800mg/m |
|
|
Response Time: |
10 seconds (T90) |
|
|
Repeatability: |
1% |
|
|
Linearity: |
2% FS |
|
|
Zero Drift: |
2% FS per 24 h |
|
Physical & Environmental Specifications |
Process Temperature: |
-20 to +100 |
|
|
Ambient Temperature |
-10 to+50 |
|
|
Humidity |
95% RH (non-condensing) |
|
|
Gas Velocity |
4m/s |
|
|
Ingress Protection |
IP65 (with rain cover) |
|
|
Probe Length |
300 mm (custom lengths available) |
|
|
Weight |
Approx. 5 kg |
|
|
Construction |
SS 316L (process-wetted parts) |
|
Electrical & Communication |
Power Supply |
12-24 VDC |
|
|
Power Consumption |
10W |
|
|
Output Signal |
4-20 mA (isolated, max load 500 (2) |
Reliable Real-Time SPM Monitoring
Engineered for continuous stack and duct emission analysis, our SPM Analyzer blends robust hardware with an efficient laser scattering sensor, delivering real-time monitoring of particulate levels up to 100 mg/Nm3. With a quick response time and efficiency above 98%, you can trust the data for compliance and process control.
Versatile Communication & Data Integration
Stay connected and ensure effortless data management through RS485, 4-20mA, or optional Ethernet interfaces. Compatible with cloud storage and equipped with an internal memory, you can access and analyze historical or live emission data at your convenience.
User-Friendly Operation and Maintenance
Enjoy simplified calibration through manual or auto-calibration functions, plus a user-friendly interface for both on-site and remote monitoring. The vertical, wall-mounted design with front access and a secure lock ensures easy service and dependable operation in demanding industrial environments.
FAQ's of SPM Analyzer/ Online SPM Analyzer:
Q: How does the SPM Analyzer work for continuous emission monitoring?
A: The SPM Analyzer utilizes a laser scattering sensor for real-time, continuous measurement of suspended particulate matter (SPM) in air streams, providing immediate and accurate data for industrial emission monitoring.Q: What communication and data logging options are available with this analyzer?
A: This analyzer supports RS485, 4-20mA, and optional Ethernet interfaces, enabling seamless integration with different control systems. Data can be logged internally or uploaded to a cloud-based platform for remote analysis and reporting.Q: When is manual calibration required as opposed to auto-calibration?
A: Manual calibration is typically used during routine maintenance checks or when verifying measurement accuracy after environmental changes, while auto-calibration can be scheduled for regular intervals to maintain consistent performance.Q: Where can this analyzer be mounted and used effectively?
A: The analyzer is designed for wall-mounted, vertical orientation and is ideally suited to stack and duct emissions monitoring applications, making it perfect for industries such as power plants, manufacturing, and air quality management systems.Q: What is the process for servicing the device?
A: Service access is provided through a secure, front-access panel with a lock, allowing for easy probe maintenance, calibration, and general servicing without the need to dismantle the entire unit.Q: How can users benefit from the programmable alarm output?
A: The programmable relay alarm output promptly alerts operators when particulate concentrations exceed preset thresholds, enabling swift corrective actions and improved regulatory compliance.Q: What ensures durability and corrosion resistance in this analyzer?
A: Durability is maintained through a combination of mild steel powder-coated enclosure (IP65 rated), a corrosion-resistant alloy or PTFE-coated probe, and robust industrial-grade components, ensuring long operational life even in harsh environments.Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email

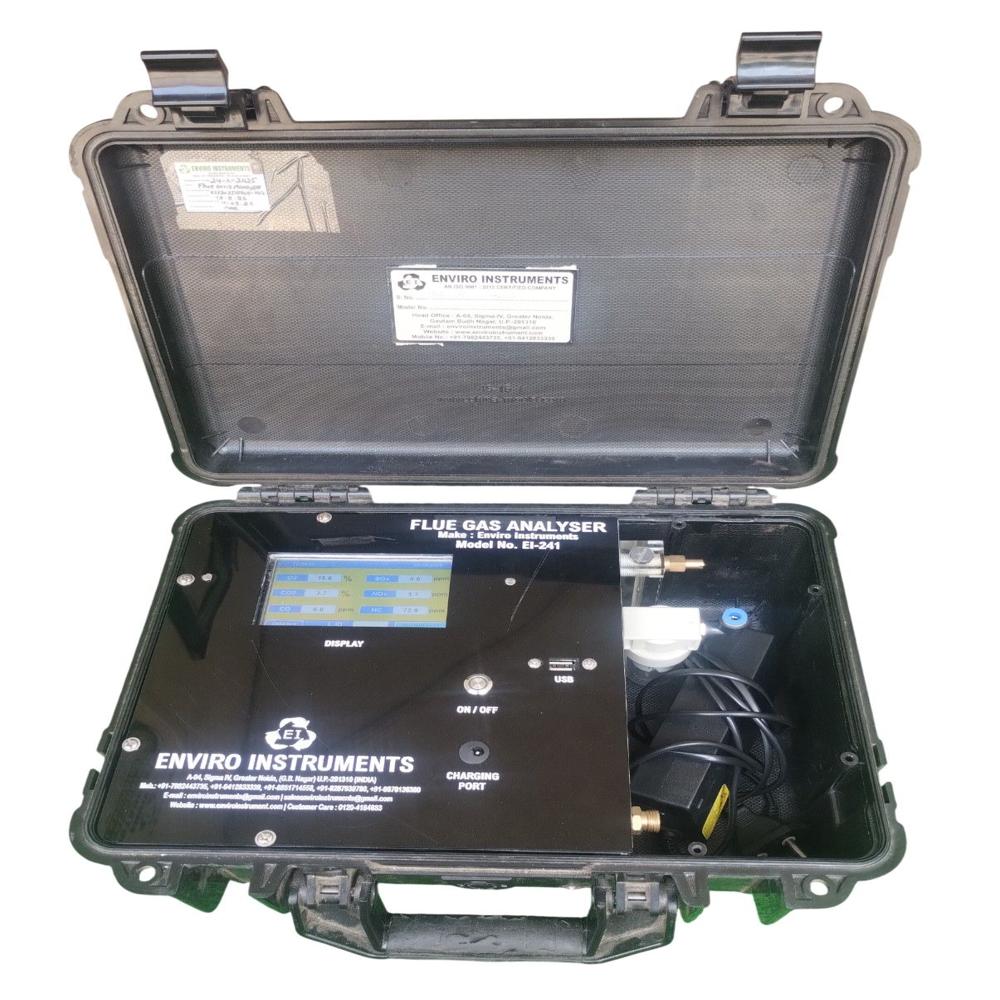

Other Products in 'Continuous Emission Monitoring System' category
