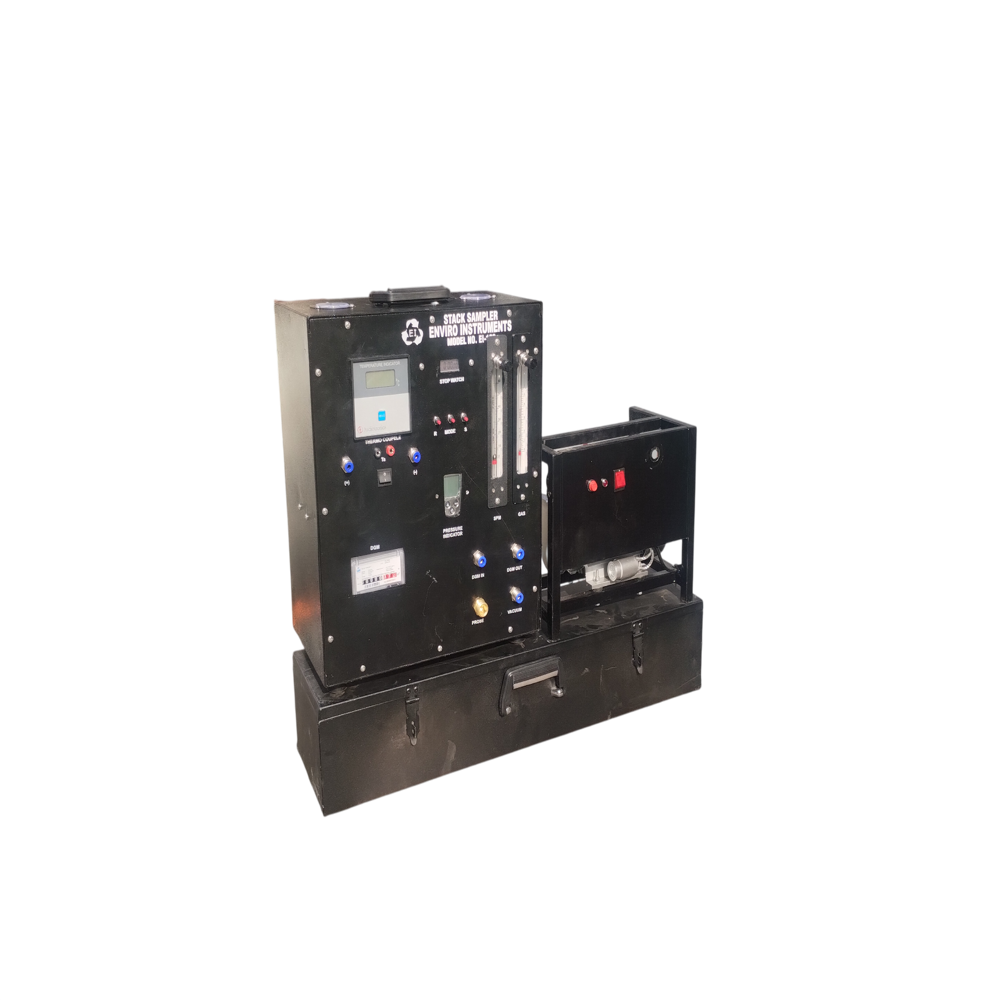

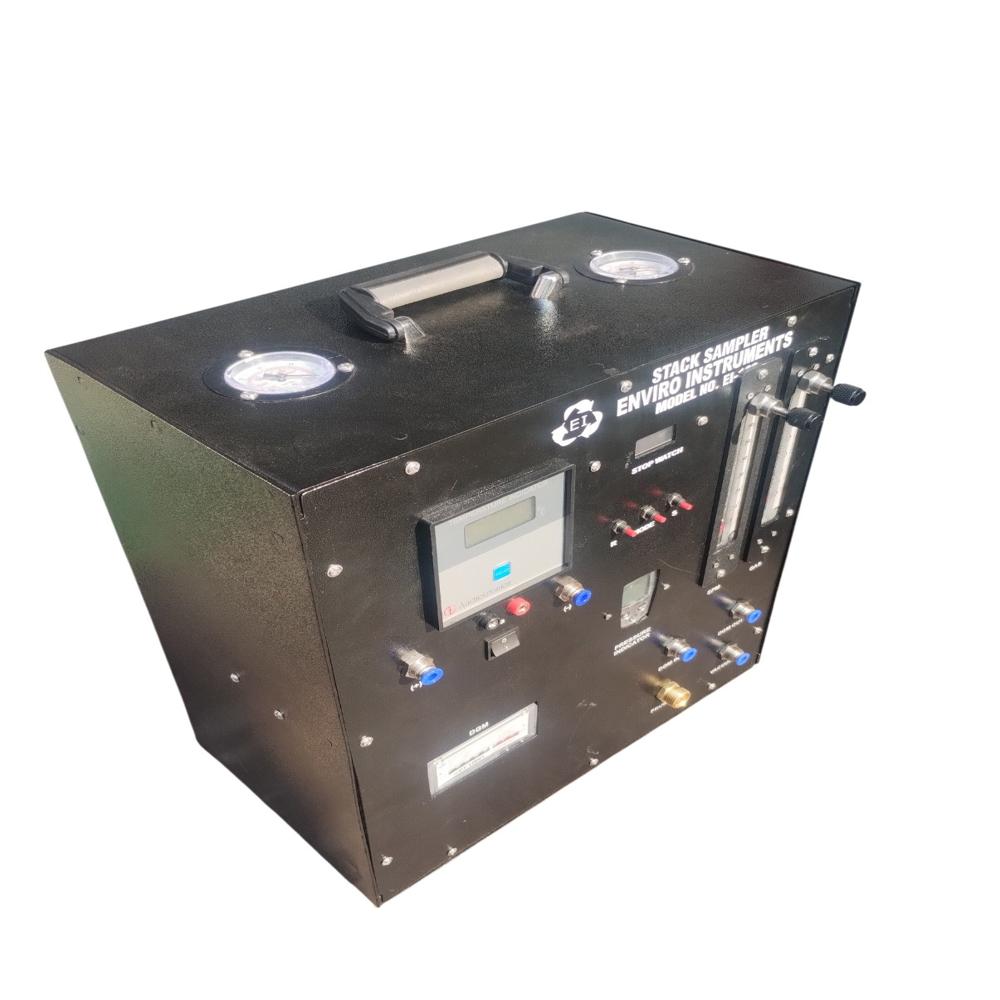

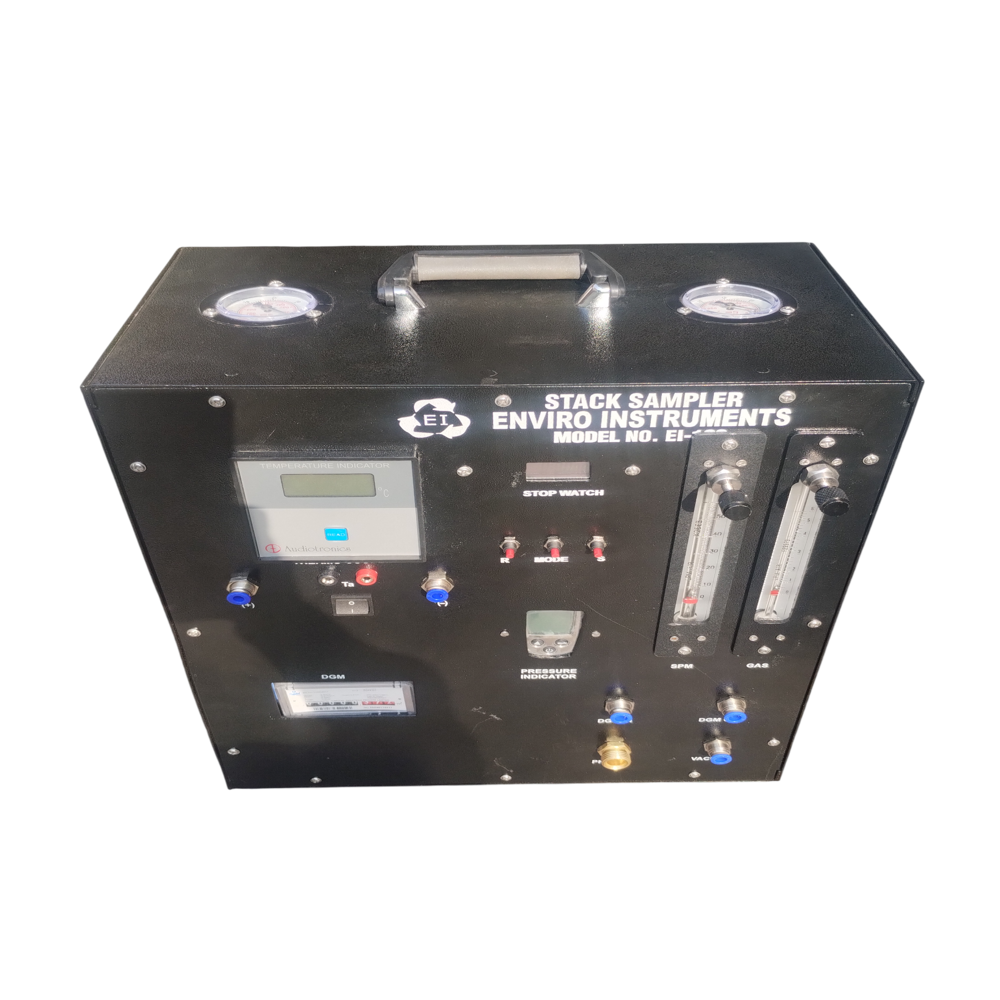

EI-106 Stack Sampler with DGM/ Isokinetic Stack Sampler/ Stack Monitoring Kit with DGM

StackTemperature Range Ambient to 600 degree celsius read on a Digital Pyrometer Stack VelocityRange 3 to 60 m/sec Thermocouple TIC sensor in SS 304 casing, length of insertion: 0.6 m Manometer Digital with 0 1300 mm of H 2 0 range Pitot Tube Calibrated S type fabricated SS 304, 0.6 m extendable to 1.2m ParticulateSampling 0.2- 30 lpm collection on thimble type filter up to 0.3 micron rating Gaseous Sampling 0.23.0 lpm collection in a set of Borosilicate glass impingers Rotameter Plastic body with 2% FSD accuracy, 0 30 lpm PM and 0 3 lpm for GAS Sampling Probe Made from SS 304 tube, 0.6 m length extendable to 1.2m Filter Holder Fabricated from SS 304 tube suitable to hold either cellulose filtration thimble (Size 28mm 10 X 100 mm long) or glass micro fibre thimble (size19mm ID X 90mm long) NozzlesA set of 3 stainless steel nozzles Digital Clock 060 minutes, 1second readout with start and stop switches Sampling Train1 No. of 240 ml cap. 2 No. of 120 ml cap. borosilicate glass impingers accommodated in ice tray, placed on the rear side of instrument panelwith a provision to keep ice VacuumPump Monoblock Rotary Vane type, oil lubricated, single phase, motor ( with more than 50 lpm free flow capacity.
